What are Sidewalk Flags and Why are they Important?

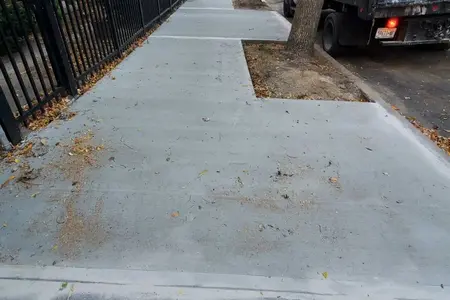

Sidewalk flags are flat, rectangular pieces of concrete. They are usually 5x5 feet in size and are placed near each other to make the pathway. Each slab is separated by an expansion joint. These joints allow the flags to expand or contract without exerting pressure on the adjacent area during temperature changes.
Constructing a sidewalk while integrating the flag technique is an efficient way to avoid complete replacement in case of damages. Only the affected area can be removed, and new concrete can be poured if its surface has cracked or become uneven.
Why Sidewalk Flags are Important?
Installing a sidewalk in front of a building using the concrete slabs can be helpful in numerous ways. Let us have a look at them one by one:
Cracking Control
Slabs placed near each other have expansion joints between them. These joints allow concrete to expand and contract without exerting extra pressure on their adjacent slabs. This can reduce the cracking and buckling on the concrete surface and ensure the sidewalk's longevity and safety.
Easy Replacement
Pouring concrete for sidewalk construction can be complicated and requires a lot of planning, especially when it gets damaged and needs repairs. However, concrete slabs are simple to remove when damaged, avoiding the need to disturb the entire sidewalk. They make the replacement easier and allow for adjustments as needed.
Durability
Concrete is known for its durability and longevity. As the slabs are made from high-quality concrete and are at least 4 inches thick, they can withstand extreme weather conditions and wear and tear. Moreover, during most constructions, sidewalks are reinforced with rebar, which allows them to expand or contract without getting damaged.
DOT Regulations for Sidewalk Slabs
The New York City Department of Transportation has specific guidelines for the construction and maintenance of sidewalk flags. Below are the regulations for constructing them.
Thickness
The standard thickness of a concrete slab as per DOT guidelines should be 5 feet. However, it can change based on the soil condition, the intended use of the sidewalk, and local building codes.
When the soil beneath is in the form of sand or gravel, a sidewalk should be 4 inches thick for light axle loading and 5 to 6 inches thick for heavy axle loading. In the case of silt or clay, a sidewalk should be 5 inches thick for light axle loading and 6 inches or slightly greater for heavy axle loading.
Other factors that affect sidewalk thickness include the concrete mix and traffic. When it comes to concrete mixes, different mixes have different compressive strengths, which is a measure of how much weight they can bear. Sidewalks in areas with heavier traffic, such as commercial or industrial spaces, should be 5-6 inches thick.
Width
A standard sidewalk should be at least 5 feet wide to comfortably accommodate two people walking side-by-side, with some areas like busy commercial districts requiring wider sidewalks up to 8-10 feet wide; the length will depend on the specific location and needs of the area, but typically extends along the length of the property line it is adjacent to.
According to ADA guidelines, a minimum sidewalk width of 36 inches is required to allow for wheelchair access. A standard sidewalk width in residential areas is usually between 4-5 feet.
For busy commercial districts, sidewalks should be wider (8–10 feet) to accommodate larger pedestrian volumes. If a sidewalk is directly next to traffic, consider adding an extra buffer zone for safety, making it even wider.
Materials and Specifications
The standard concrete PSI for sidewalks is 3000–4,000 pounds per square inch (psi). Concrete PSI measures the compressive strength of the concrete, and a higher psi means the concrete is stronger and more durable.
Generally, 3500-4000 psi concrete slabs are used in residential properties for storing heavy loads, while for sidewalks in commercial areas like warehouses, factories, and other large-scale industrial zones, 4,000-5,000 psi concrete slabs are used. Concrete structures in colder climates require a higher psi to withstand more freeze/thaw cycles.
Conclusion
Concrete slabs are designed for durability and longevity. They are essential for providing a safe and accessible path for everyone. By following the DOT regulations regarding their construction, you can ensure safety and easy access. It is crucial to keep them in good shape, as the broken slabs can cause injuries, fines, and costly repairs. If they are damaged in front of your property, you may get help from professional contractors to avoid any violation and legal penalties.
